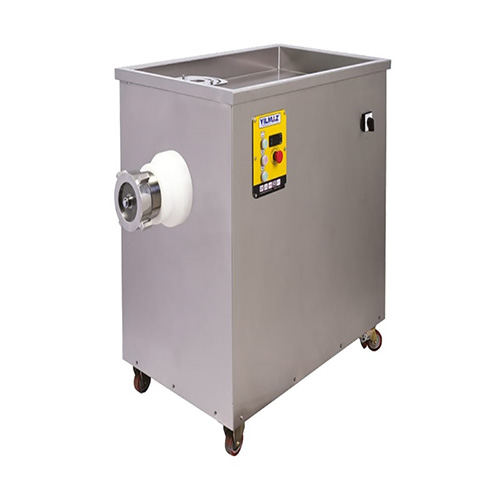

| Code | INOX 4233 STR |
| CAPACITY | 1.150 Kg / H |
| MOTOR POWER | 7,5 Kw. 10Hp 400 Volt 50 Hz. |
| MIRROR / KNIFE | 1 / 1 |
| WIDTH / LENGTH / HEIGHT | 750 x 1350 x 1115 mm |
| WEIGHT | 356 kg |
• 2 (two) contactors are used as motor protector in the machine.
• The machine is equipped with a highly efficient helical bevel gear system monoblock cast iron body reducer.
• 304 quality stainless steel is used in all connection equipment of meat processing units in the machine.
• 304 quality stainless steel sheet is used in the upper tray (meat loading chamber) and casing.
• Anti-heat insulation is applied to the lower surface of the upper tray.
• There is a hand protection apparatus made of 304 quality stainless steel with a thickness of 5 mm.
• There is a carrying handle on the back cover of the machine.
• The sleeve (meat outlet chamber), spiral (auger or ball), collar (nut) and meat entrance throat are made of 304 quality stainless steel.
• There is a stainless steel key to remove and install the ring (nut).
• There are forward-back-stop buttons and emergency stop button for emergencies.
• The machine can be moved easily, there are 2 fixed and 2 rotating wheels.
• It is operated with 1 mirror and 1 knife system.
• The machine has an oiling system to lubricate the clutch shaft bearing from outside.
• There is a protective protection wire on the lower surface of the machine to prevent intrusion of insects.
• The machine has an oil and flame resistant electrical connection cable.
• There is a cooling system in the machine so that the mince does not darken and does not smell.
• 1/6 hp ecovat is used in the machine.
• Ozone and environmentally friendly R 134 a liquid gas are used in the machine.
• There is a digital cooling automatic for adjusting the cooling degree.
